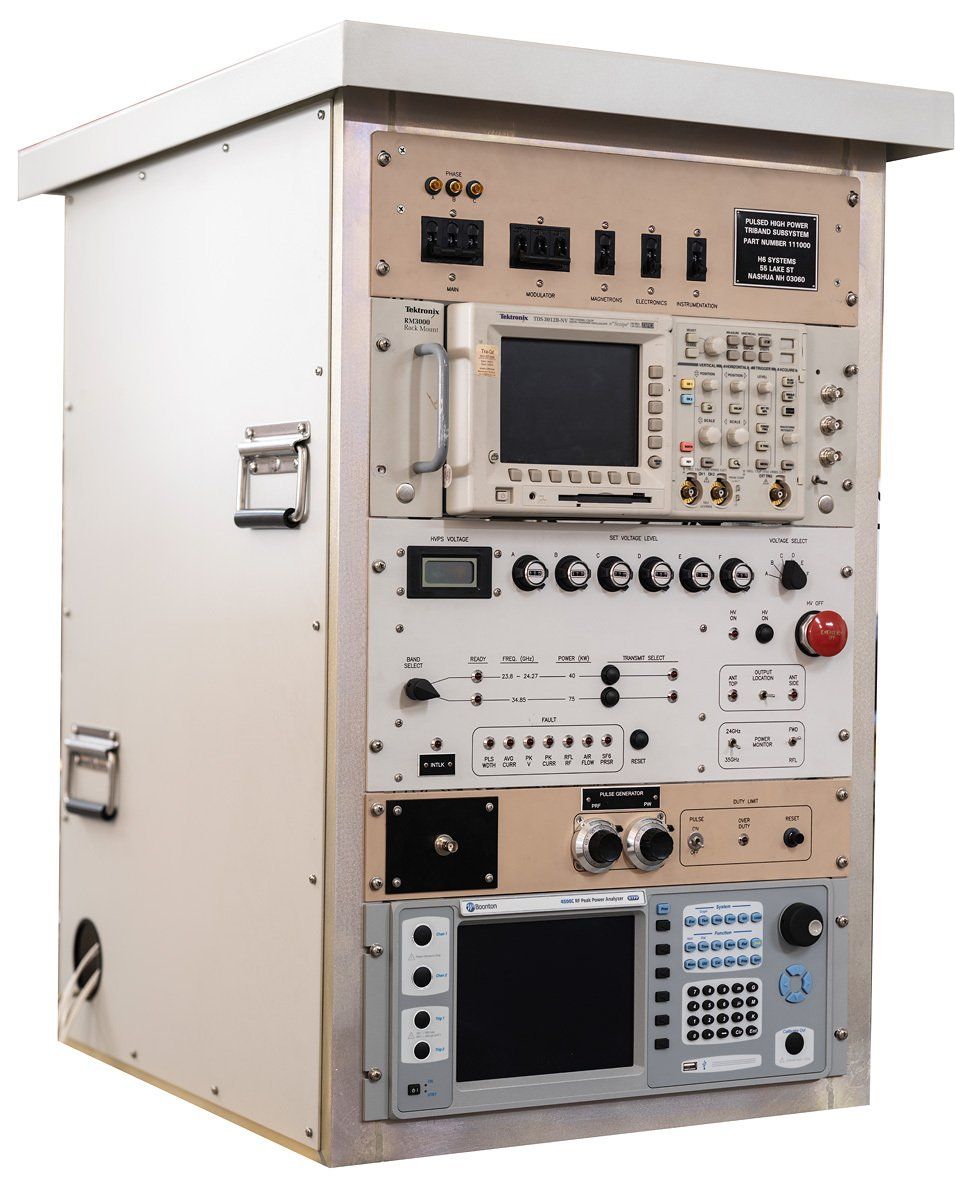

Pulsed High Power RF Transmitters
H6 Systems provides pulsed, tube-based transmitters for high power applications. Output powers run from hundreds of kilowatts to well into the megawatt range. We match the right vacuum tube with the right modulator to provide our customers with high power transmitters and pulsed amplifiers that fit their requirements. Our transmitters can be controlled remotely from a computer or from a local console with an H6 supplied GUI. An internal control system monitors and protects from faults such as high reflected RF or tube arcs and also guards against harmful operator input. They can be supplied as stand-alone systems or integrated into your own equipment. Lower power transmitters are air cooled. Transmitters above 1.5MW are liquid cooled. H6 transmitters are used for susceptibility testing, medical systems, security systems and research. Give us a call to discuss your application.

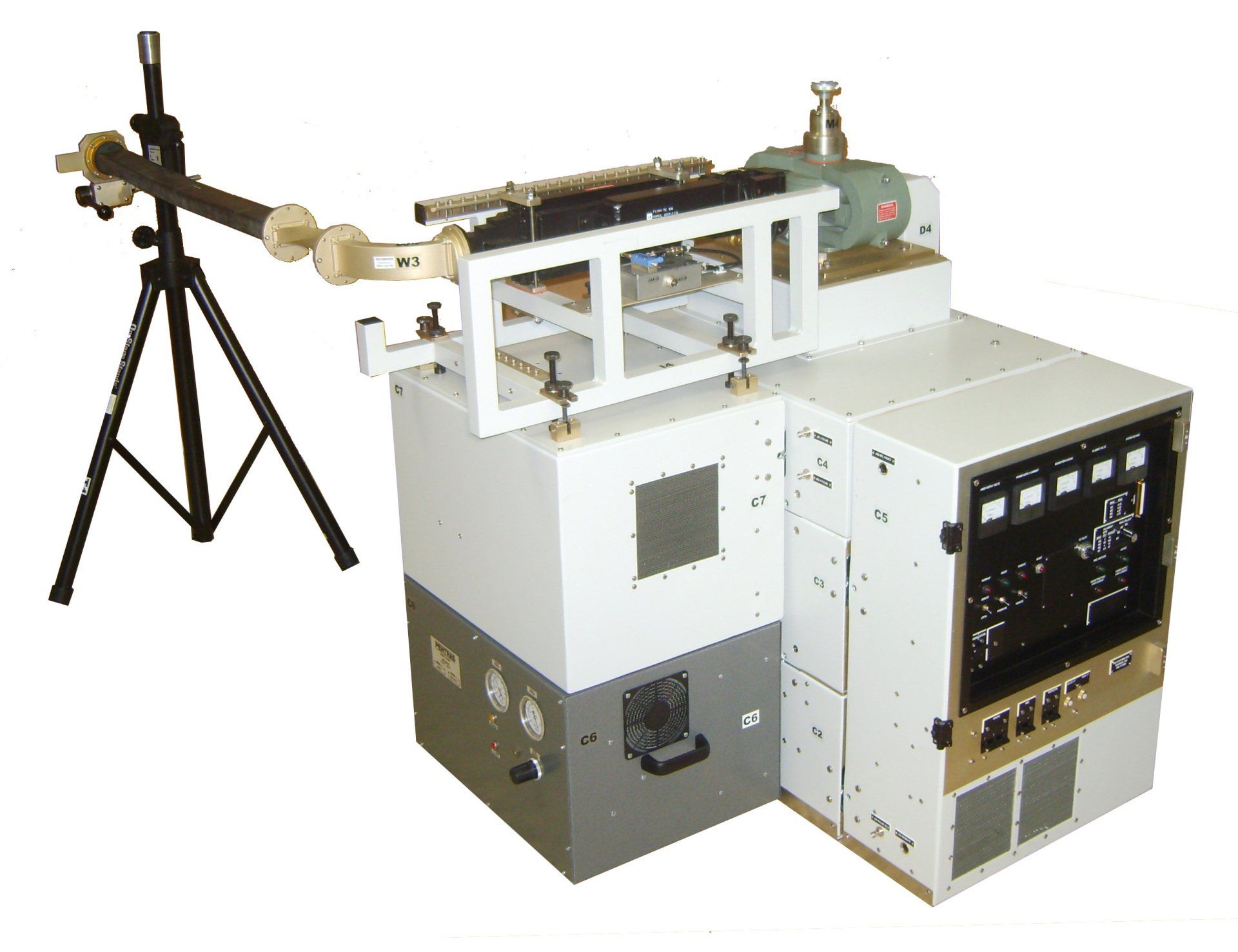

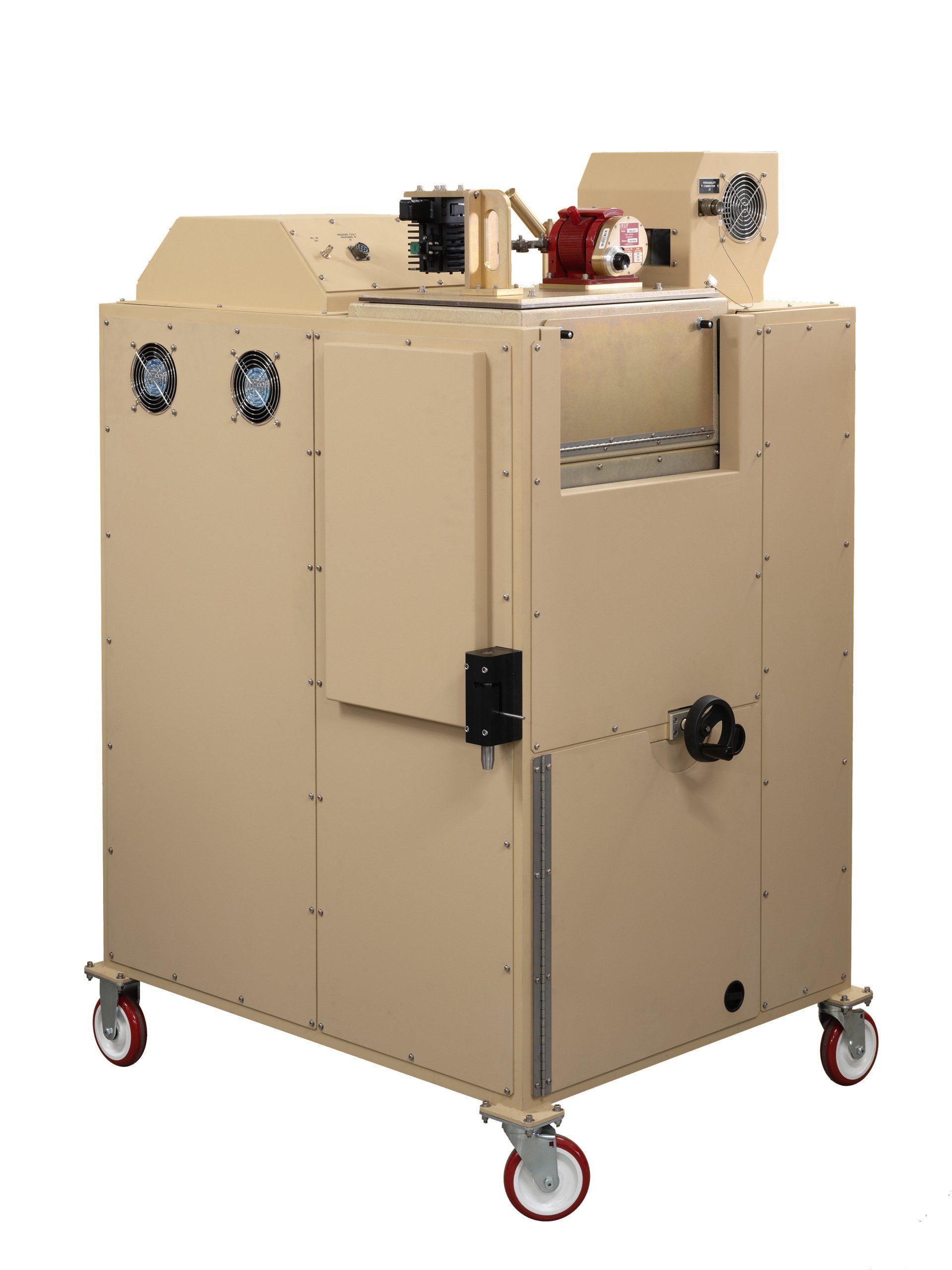

Magnetron Transmitters
Tube no. SFD-369
Tube no. SFD-313A
SFD-303B
Frequency: 9.275 – 9.325 MHz
Power: 1 MW
Max Pulse Width: 4.25 uS
Duty: .001
Cooling: Air or water
PM-127S
Frequency: 2.48 – 2.7 GHz
Power: .75 MW
Max Pulse Width: 2 uS
Duty: .001
Cooling: Air or water
PM-920s
Frequency: 3.1 – 3.5 GHz
Power: 1 MW
Max Pulse Width: 2.4 uS
Duty: .001
Cooling: Air or water
SFD-332
Frequency: 32.9 – 33.5 GHz
Power: 60 kW
Max Pulse Width: 2.2 uS
Duty: .0006
Cooling: Air
SFD-349
Frequency: 8.5 – 9.6 MW
Power: 200 kW
Max Pulse Width: 2.8 uS
Duty: .001
Cooling: Air
SFD-352
Frequency: 8.5 – 9.6 GHz
Power: 220 kW
Duty: .001
Cooling: Air
SFD-373
Frequency: 5.45 – 5.825 GHz
Power: 240 kW
Max Pulse Width: 2 uS
Duty: .001
Cooling: Air
VMA-3078
Frequency: 36.25 – 36.75 GHz
Power: 100 kW
Max Pulse Width: .4 uS
Duty: .0003
Cooling: Air

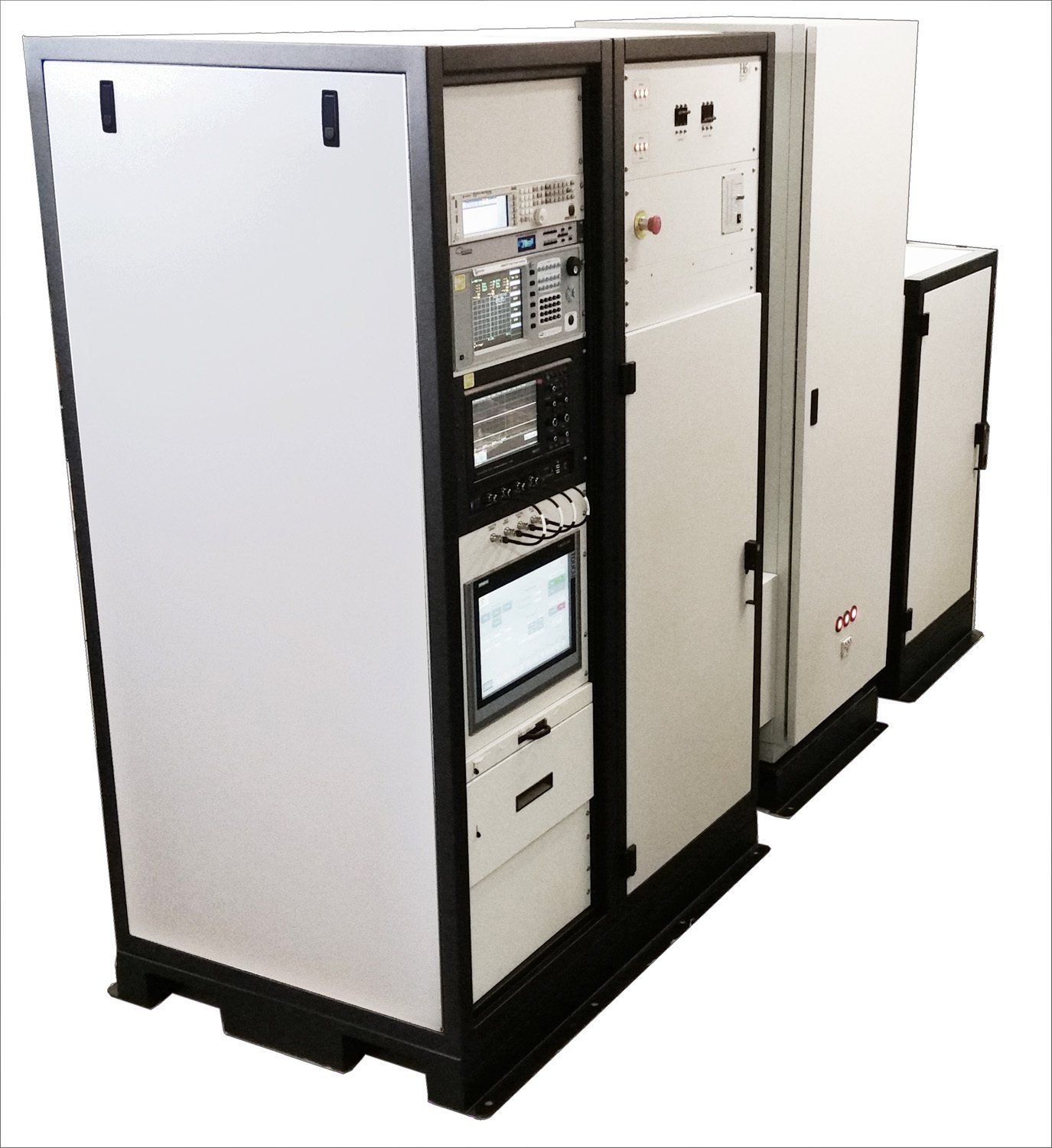

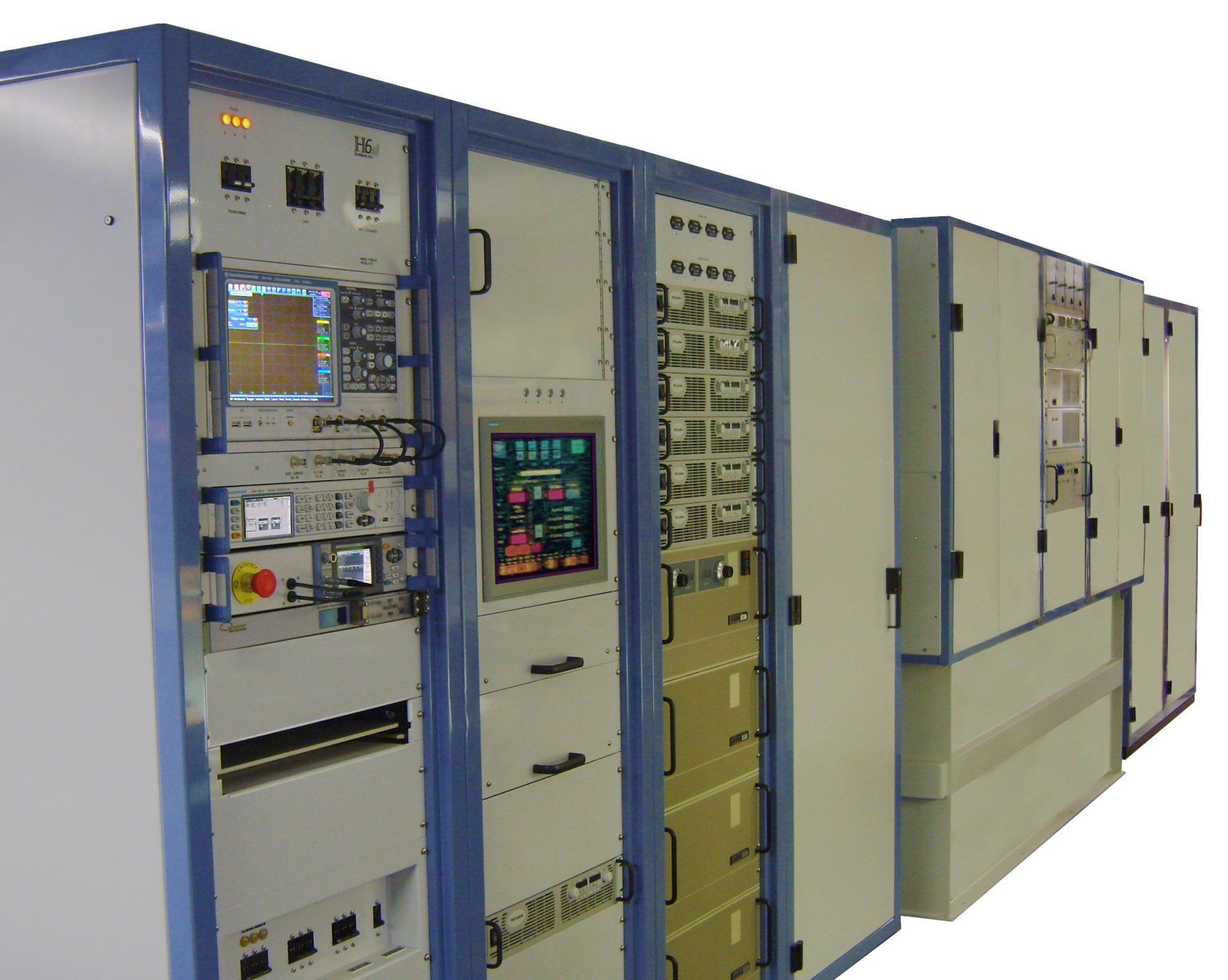

Klystron Transmitters
VKL-8271B
Frequency: 1.25 – 1.35 MHz
Power: 2.5 MW
Max Pulse Width: 4 uS
Duty: .0016
Cooling: Air or water
VA-889F
Frequency: 850 - 942 GHz
Power: 300 kW
Max Pulse Width: 130 uS
Duty: .037
Cooling: Water
VKS-8262G
Frequency: 2.9985 GHz
Power: 7.5 MW
Max Pulse Width: 4 uS
Duty: .001
Cooling: Water
And many more
Please call for information
VKS-8345B
Frequency: 2.9 – 3.1 GHz
Power: 4.5 MW
Max Pulse Width: 4 uS
Duty: .002
Cooling: Water
VKC--8313
Frequency: 5.4 – 5.9 GHz
Power: 3 MW
Max Pulse Width: 4 uS
Duty: .002
Cooling: Air or Waterir
